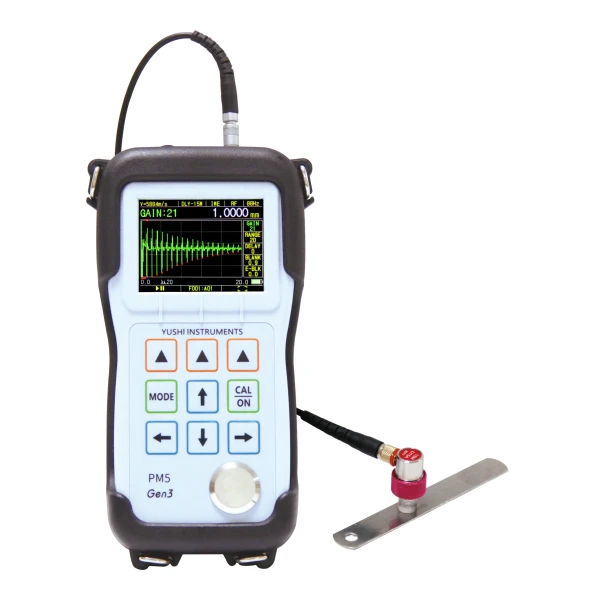

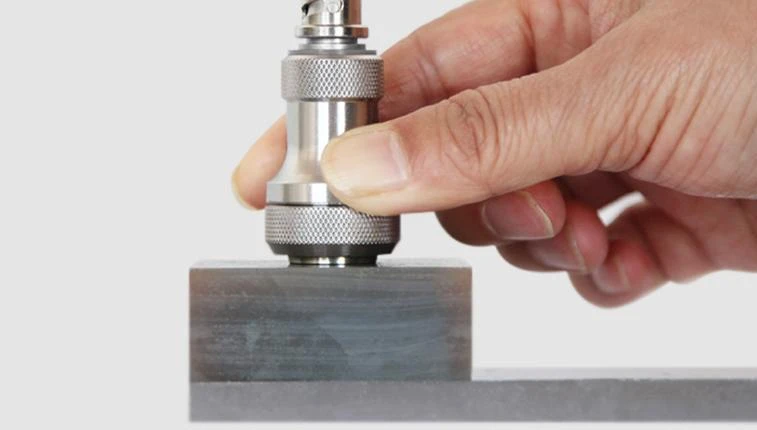

High Precision Ultrasonic Thickness Gauge

High-precision Thickness Gauge for Measuring Difficulties

Excellent Durability

for harsh environment,LCD Clear display,One-hand operation

The PM5 Gen3 has passed IP67 test, making it can still perform well in harsh environments.

Its colorful LCD screen displays the waveform and features with excellent visibility even under the strong sunlight or dim light.

Paired with a rubber protective boot and a bracket, it offers a stable and easy one-hand operation for users







Ultra-high Resolution

0.0001mm resolution

The standard display relosution is optional 0.1/0.01/0.001mm,

the maximum resolution can be 0.0001mm(I-ME Mode).

Outstanding Performance

Thru-coating & Multi-layer composition measurement

Can easily penetrate the high-attenuation coating to measure the substrate and has outstanding features on differentiating the 2-5 layers of composition.

Customizable Software

16 Software options can be selected



Users can customize the software fuctions of PM5 Gen3

according to their measuring requirements to solve the difficulties.



1.Military Housing And High Quality For Harsh Environments

2.Dual Detection Polarity

The polarity of the echo related to the relative acoustic impedance of the two medium(density X sound velocity).Different material has different acoustic impedance. YUSHI PM5 Gen3 ultrasonic thickness gauge can allow the users to change the sound velocity so that ensure the measurement accuracy.

3.Measuring Type

Measuring Type: There are four types of ultrasonic echo:standard,first peak,peak and Summit.

Standard:First peak of the bottom echo through the gate

First Peak:The first peak of a set of waves passing through the gate

Peak:The highest peak in a set of waves

Summit:The highest peak in all groups of waves

1.Oil and gas pipeline:

Measure the material through the coating;

3PE anti-corrosion layer pipeline thickness measurement;

Bimetallic composite panels thickness measurement

Inner pipe wall oxide layer thickness measurement

2.Automotive parts:

Automobile sheet metal stamping parts thickness measurement

Wind shield thickness measurement

3.Aerospace components:

Absorbing coating material thickness measurement

Carbon fiber thickness measurement

4.Food and Biotechnologies:

Egg shell thickness measurement

Water Plastic bottle thickness measurement

5.Material Analysis:

High-attenuation material thickness measurement

Nodularity of the cast iron measurement

Acrylic thickness measurement

Rubber thickness measurement

Industrial Solutions Provided By PM5 Gen3







corroded material Detection

• Through 20mm or thicker coatings measurements
• OXIDE Mode: measure and display oxide layer and substrates thickness simultaneously
• Pitting corrosion detection
• Cast Iron spheroidization rate measurement





250-480℃ HIgh-temp measurement

• Temperature Compensation Option
• Directional Capture Option
• High Speed Measurement
• Synchronous Directional Display
• Automatic Freeze Option





coated material measurement

• 0.54mm Absorbing coat measurement
• COAT Mode:10μm coating measurement on wood,glass or other non-metal materials





double layers measurement

• Measure and display the thickness of 2-layer composite material thickness simultaneously
• Measure the coating or paint layer separately and display them at the same time.
• Used for coated materials and dual-metal composites.







multi layers measurement

• Calculate and display the thickness measurements of up to 5 different layers or 4 layers and total thickness simultaneously.
• Used for aircraft wind shield,co-extruded materials,plastic fuel tanks,etc.





large range&high attenuation

measurement

• Large Range Option：Up to 38m thickness measurement range
• Measure high attenuation materials such as rubber,acrylic, glass fiber,etc.





irregular objects measurement

• Egg shells thickness detector
• Measure high-curvation materials including pen refills,tubes with small dismeters, auto stamping parts,etc.
• Measurements with immersion tanks and probes





data logger and pc interface

• Storage Option：Store 100000 thickness values and 400 waveform files. Transport the data into the computer through USB and stored in EXCEL or TXT file.

Application Cases From Various Industries

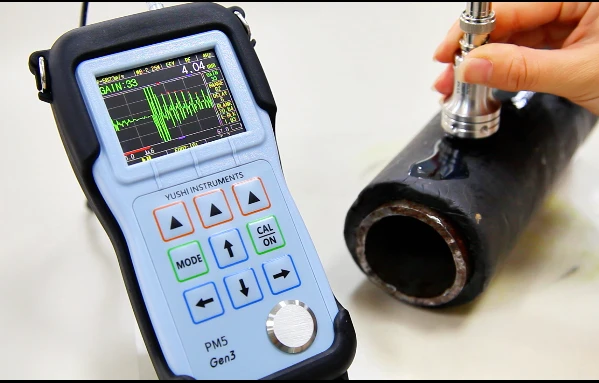

Case1:Pipe Thru-coating Substrate Inspection

Workpiece:4mm thick steel pipe with 8mm rubber coating

Target: Measure the thickness of the steel pipe without removing the rubber coating

Probe:2.25Mhz protective membrane probe( developed by YUSHI)

Measurement Mode:Echo to Echo Verification Mode.

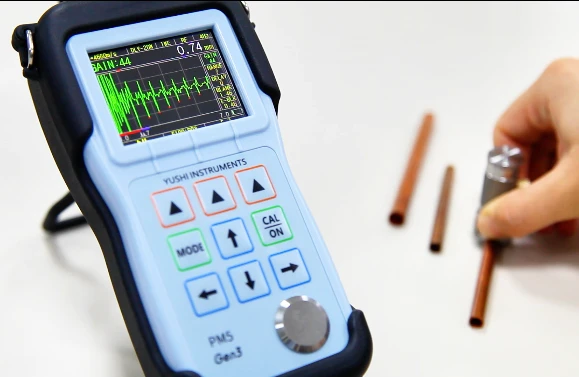

Case2:Small Diameter Copper Tube Measurement

Workpiece:φ6mm Copper Tube with 0.75mm wall thickness

Target:Measure the thickness of the Copper tube wall, achieving stable and vertical thickness measurement.

Probe and Accessory: Single element 20Mhz Probe with Probe Holder

Measurement Mode:MEV(Multiple Echo Verification). With this measurment mode, PM5GEN3 can measure thin material and capture multiple buttom echos to verify the thickness values. Make the results more reliable and accurate.

Case3:Oxide Layer Thickness Measurement

Workpiece: 6.40mm Thick Tube with 0.30mm Oxide Layer on the Inner Wall

Target:Measure the thickness of the oxide layer on the inner wall to evaluate the spare lifetime of the devices.

Probe:Single-element 20M Shear Wave Probe

Sound Velocity:3338m/s

Used Software Function: OXIDE Measurement Mode. This function can measure and display the waveform and thickness values of tube wall and oxide scale simultaneously.  Standard 15Mhz probe's lower measurement limit is 0.25mm. The 20Mhz probe's lower measurement limit is 0.15mm.

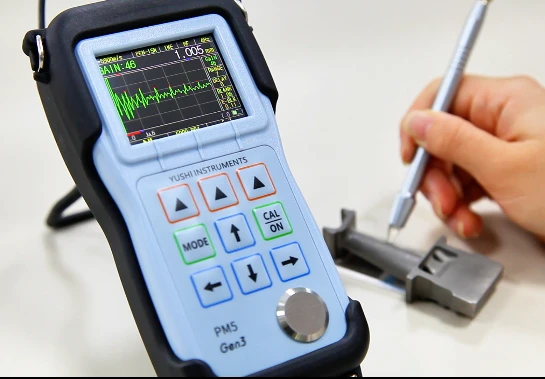

Case4:Airplane Turbine Blades Measurement

Workpiece:1.005mm thick Airplane Turbine Blades

Target: Achieve vertical and stable measurement at high curvature surface

Probe: 15MHz Pen Type Probe with φ1mm contact diameter

Measurement Mode:Multiple Echo Veification Mode

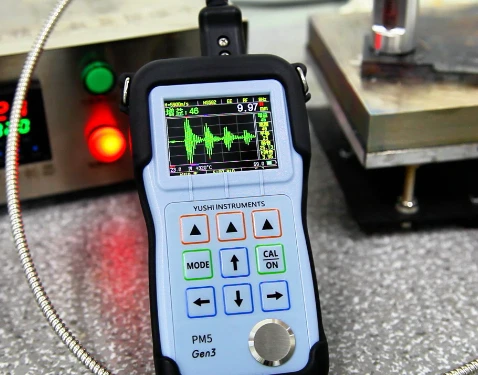

Case5:320℃ High-Temp Thickness Measurement

Workpiece: 320℃ 10mm 1018 Steel Test Block

Target: Measure the high-temp workpiece for just seconds, freezing the waveform and the thickness values for convenient readings.

Probe:Dual-element Thickness Probe

Accessory: High-temp Detection Kit,including high-temp cable, couplant dispensor, extension rod

Measurement Mode: E-E(Echo to Echo measurement mode)

No.	Name	Unit	Number
1	Ultrasonic Thickness Gauge	Set	1
2	Couplant Bottle	Pc	1
3	Single Probe D15A	Pc	1
4	Single Probe Cable	Pc	1
5	Rubber Protective Case	Pc	1
6	Carrying Case	Case	1
7	Operating Manual	Copy	1
8	Quality Certification	Copy	1
9	Maintenance Card	Copy	1
10	Packing List	Copy	1
11	USB Flash Drive	Set	1
12	USB Cable	Pc	1
13	Certificate of Calibration	Copy	1
