YUSHI DM30 Series Densitometer:
Overview of DM Series
DM30 Series Black & White Densitometers developed by YUSHI are high-precision measuring instruments for quantifying the density of X-Ray films. Equipped with advanced computer calibration technology, the instruments perform outstandingly because of its characteristics, such as accurate readings, excellent stability, strong anti-reference capability and user-friendly calibration and operation. These features make this series testing tools ideal instruments across multiple industries. Each densitometer comes out with standard step tablet and calibration software, so that the accuracy can be ensured even if it has been used for a long time.
Model Comparison
Black&White Densitometer
Density Range:D=0.00-4.50A
Repeatablity:±0.02 (consistent across full range)
Measuring Error: ±0.02 (0.0 < D ≤ 2.0)
±1% (2.0 < D ≤ 4.0)
±0.05 (4.0 < D ≤ 4.5)
Light Source:27pcs LED (stable, long-lasting)
Aperture Size:Diameter 2mm (precise sampling)
Display:Three-digit digital display
Sampling Time:0.8 seconds
Power Requirements:50~60Hz; 100V–120V/200V–240V
Power Dissipation:Approximately 25W
Communication Ports: Standard RS232;optional USB
Black&White Densitometer
Density Range:D=0.00-5.00A
Repeatablity:±0.02 (consistent across full range)
Measuring Error: ±0.02 (0.0 < D ≤ 2.0)
±1% (2.0 < D ≤ 4.0)
±0.05 (4.0 < D ≤ 5.0)
Light Source:27pcs LED (stable, long-lasting)
Aperture Size:Diameter 2mm (precise sampling)
Display:Three-digit digital display
Sampling Time:0.8 seconds
Power Requirements:50~60Hz; 100V–120V/200V–240V
Power Dissipation:Approximately 25W
Communication Ports: Standard RS232;optional USB
Shared Advantages of DM30 Series
±0.02 Density Error Control
DM30 series provide strict error control and repeatability of ±0.02 minimize the measurement deviation.
Excellent Anti-reference Ability
The YUSHI Densitometers can resist external electromagnetic interference.
user-friendly operation
The trainling costs of DM30 series are reduced because the easy operation.
Flexible Data Transmission
DM30 series support RS232 and optional USB for data transmission. This is very convenient for labrotary analysis.
Key Features of DM30 Series
Detachable Light hole
For the DM30 series densitmeters, users can remove the light source shell with tape and gently wipe the dust off the light-emitting diode with a cotton swab dipped in alcohol.
Self-contained calibration software
Self-calibration is very easy to all skill-levels users becuase of the software and clear instruction of the instruments.
lED Lighting Source
LED lighting source provide strong and continuous lightness. Make the instrument can be applied for various environment.
Fine-tuning potentiometer
As the instrument ages, the measurement values of densitometers can be lower or higher than the actual densities. The potentiometers at the bottom can be adjusted by users.
Applications Across Industries
DM3010A and DM3011 are widely used in four key fields, and their model selection can be customized according to density range requirements:
- Non destructive testing (NDT): Measuring the blackness of industrial inspection films (such as pipelines and steel structures). DM3011 is an ideal choice for high-density non-destructive testing films (up to 5.0D), while DM3010A is sufficient for medium density applications (up to 4.5D).
- Printing industry: Calibrate the ink layer blackness on printing materials (such as packaging, labels) to ensure color consistency.
- Medical industry: Analyze the blackness of X-rays or radiation films to support accurate diagnostic assessments.
- Photographic Materials Department: Test the blackness performance of photosensitive film to ensure compliance with production standards.
Calibration&Maintenance Instruction
1.Calibration Process
We use the standard tablet and computer software to finish the quick and convenient calibration:
- Select the serial port.
- Enter standard densiity values and original density values.
- Fit a calibration curve to compensate for photocell nonlenearity.
- Download parameters to the instrument.
2.Maintenance
- Please keep the instrument away from dust, moisture, acid, alkali, and magnetic fields.
- If zero calibration fails (due to dust), clean the LED of the aperture with cotton swab dipped in alcohol.
- Store the step density tablet in clean and dry place and only use it to verify accuracy (if the measured value deviates, recalibration is necessary).

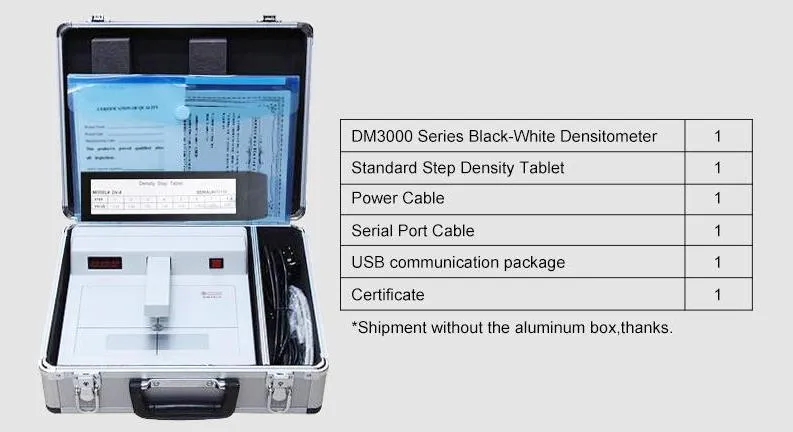

Standard Configuration
We're well-known as one of the leading black and white densitometer manufacturers and suppliers in China. Please feel free to buy high quality black and white densitometer for sale here from our factory. Contact us for more details.
