Our Best-Selling Ultrasonic Pulse Generator And Receiver
Ultrasonic Pulser-Receiver
YUSHI PRmini Ultrasonic Pulser-Receiver is an ultrasound systems that based on Windows systems. Its unique working principles can provide users with effiecient accurate guidance. The equipment is widely used across various industries, including aerospace, automotive, and machinery manufacturing, achieving fast and precise ultrasonic testing, thickness measurement, and probe detection technologies.
Core Specifications
Transmitting voltage can up to 200V
Receiving area gain:-4~55dB
Bandwidth:0.5-20Mhz
Repetition frequency:Internal trigger(4Hz-2kHz),External trigger(0-20kHz)
Ultrasonic Pulse Generator Module
The PR20 Ultrasonic Pulse Generator and Receiver is designed for industrial non-destructive testing, probe frequency inspection, material analysis and experiments. As a computer-controlled intelligent inspection equipment, PR20 integrates high-voltage pulse transmission, high-sensitivity signal reception and intelligent analysis, supporting complex scenarios such as ultrasonic flaw detection, thickness measurement and transducer performance testing.
Core Specifications
Transmitting voltage can up to 400V (8 levels from 60 to 400V)
Receiving area gain:0-60dB
Bandwidth:0.5-20Mhz
Repetition frequency:Internal trigger(4Hz-2kHz) or External trigger(0-20kHz)
Ultrasonic Pulse Transmitter and Receiver Module
Vivamus tortor risus,pharetra ut venenatis ac,rutrum eget anten fusce convallis nibh felis,eget hendrerit diam rhoncus rana miss dictum lacus eleifend nisl efficitur venenatis.
Aliquam eros justo,posuere loborti viverra laoreet matti ullamcper posuere viverra .Aliquam s justo,posuere so lobortis non,viverra laoreet posuere loborti Aliquam eros justo,posuere loborti viverra laoreet matti ullamcorper posuere viverra .Aliquam s justo,posuere so lobortis non,viverra laoreet posuere loborti
Main Functions of Pulse Generator and Receiver-NDT & Material Analysis Solutions
Ideal Probes Testing Platform
Using PR series Ultrasonic pulse generator and receiver can measure the actual probe frequency by analyzing the time-frequency domains. Such inspection can optimize the sensitivity and accuracy of thickness measurement or flaw detection.
Material Characteristic Evaluation

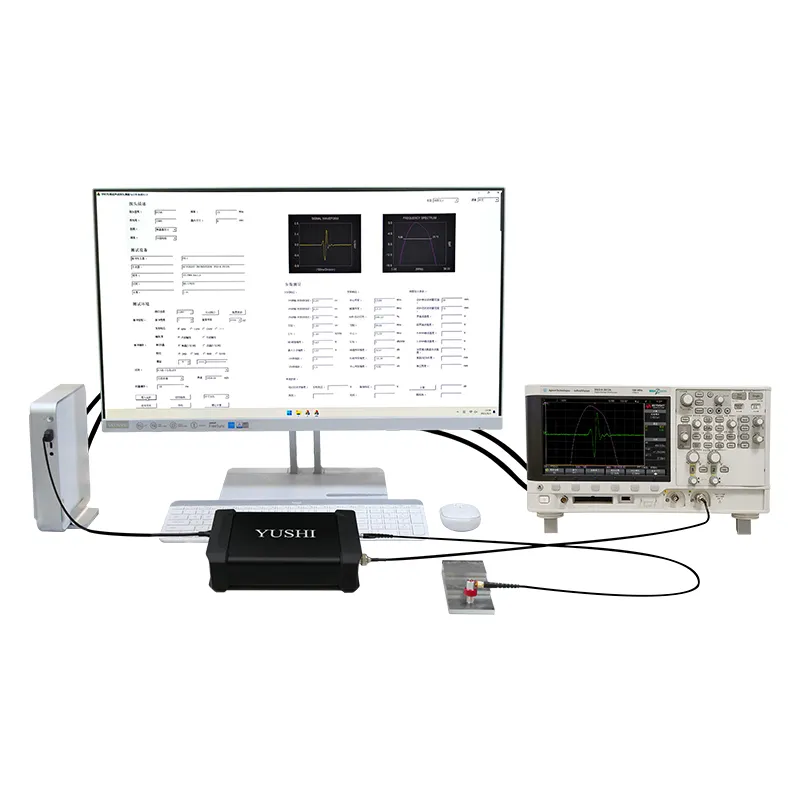

The pulser receiver can be matched to the oscilliscope, which can display the whole waveform. Inspectors can detect the internal defects and identify the sound velocity.
Ultrasonic Testing Device
PR series pulse generator and receiver can optimize the results of ultrasonic thickness testing and ultrasonic flaw detection.
Comparision between the models
| Features | PR 10 | PR 20 |
| Techinical Performance | Support dual pulse types | Maximum 400V trasnmitting voltage |
| Appearance Design | Lighter weight for testings in real testing environments | Suitable size for lab or University |
| End users | Educators, Normal NDT service center,Inspectors | R&D labs, Advanced NDT Institution |
Key Adavntages & Highlights of PR Series
Key Advantages for PRmini,PR20,PR21
1.Simple and zero-installation system for paraments adjustment based on the Windows.Users can save and load the user-defined configurations for the rapid testing preparation.
2.PR series can detect both single/dual element probes.
3.YUSHI provides pulser receivers and open SDK software so that the instruments support the custom applications on Windows OS.
Technical Highlights
- Short start-up time:PR20 rise time can be as low as 2.0ns and fall time is genrally about 2.8ns.
- Selectable pulse type: PRmini pulse generator and receiver supports both nagative peaking pulses and square waves.
- PR series pulse genrator module can be operated in 0-55℃ environments, which cover the most of the testing environmental conditions.
Ultrasonic Pulse Generator And Receiver Specification
Product drawing
Control Parameters
| PRmini | PR20 | PR21 | |
| Transmitting Area | Transmitting Voltage:60V,110V,150V,200V | Transmitting Voltage:60V,110V,150V,200V,250V,300V,350V,400V | Transmitting Voltage：25V,50V,75V,100V,125V,150V,175V,200V |
| Pulse Width:1~40(one time is approximately 28ns) | Pulse Width:15~1000ns, 5ns Stepping | ||
| Repetition Rate:4Hz,8Hz,16Hz,20Hz,100Hz,500Hz,1kHz,2kHz | Repetition rate:20Hz,50Hz,100Hz, 200Hz,500Hz,800Hz,1kHz,2kHz | ||
| Trigger Source:Internal Trigger,External Trigger | |||
| Receiving Area | Single/Dual Crystal:Single Crystal(1T/1R),Dual Crystal(1T/2R) | Single Element(Pulse Echo),Dual Element(Penetration) | |
| Damping:34Ω,50Ω,90Ω,510Ω | Damping:30Ω,39Ω,43Ω,50Ω,65Ω,83Ω,100Ω,150Ω | ||
| Gain:-4dB~55dB | Gain:0~60dB | ||
Technical Specifications
| PRmini | PR20 | ||
| Pulse Type | Negative Peaking Pulse/Square Wave Pulse | ||
| Rise Time | Generally between 4.5-8.5ns,the damping will reach 20ns when it is 510Ω | ||
| Fall Time | Generally between 3.5-6.5ns | ||
| Pulse Width | One time pulse width is approximately 28ns | ||
| Band Width | 0.5-20Mhz | ||
| Excitation Mode | Pulse-Echo(P-E), Penetration(T-T) | ||
| Repetition Frequency | Internal Trigger:4Hz-2kHz;External Trigger:0-20kHz | ||
| External Trigger | Rising Edge Trigger;Trigger Voltage:3.3V | ||
| PR21 | |
| Pulse Type | Negative Square Wave Pulse |
| Rise Time | 3.5ns(Typical) |
| Band Width | 1.5~30MHz(-3dB) |
| Working Method | Single Element(Pulse Echo) or Dual Element(Penetration) |
| Triggering Mode | Internal Trigger:4Hz-2kHz;External Trigger:0-5kHz |
| Synchronous Output | 3V,100ns,Compatible with TTL and CMOS |
| External Trigger | Positive Pulse:3-5V; Rising Edge Triggered |
| Input Impedance | 500Ω |
| Output Impedance | 50Ω |
| Output Voltage | ±5V |
Warranty
1. Failure or damage caused by the product during the manufacturing process.
2. Normal use in accordance with the instructions for use, but the product malfunction or damage.
3. Damage or loss during transportation is the responsibility of the factory.
Out of the Warranty
1. Damage caused by exceeding the rated load capacity during operation.
2. Damage caused by user's own modification and wrong repair.
3. The damage caused by the user's use or selection of unqualified parts, oils and other products that do not meet the requirements of the product.
4. Belonging to the normal maintenance content, such as: cleaning, replacement of various filters; adjustment of brakes, clutches, engines and other parts that need to be adjusted.
5. Parts belonging to normal wear and tear.
6. Damage caused by other accidents or irresistible reasons.
Standard Configuration
PRmini
| Host Machine PRmini | 1 | Connecting Cable BNC to BNC | 2 |
| Data Cable USB-4 Core Half Moon | 1 | Power Adapter | 1 |
| Communication USB Flash Disk | 1 | Control Software(Stored in USB Flash Drive) | 1 |
PR20
| Host Machine PR20 | 1 | Connecting Cable BNC to BNC | 2 |
| Communication USB | 1 | USB Type-C data cable | 1 |
| Control Software(Stored in USB Flash Drive) | 1 |
PR21
| Host Machine PR21 | 1 | Connecting Cable BNC to BNC | 2 |
| Communication USB | 1 | USB Type-C data cable | 1 |
| Control Software(Stored in USB Flash Drive) | 1 |
Our Certificate
FAQ
Q: What lowest frequency probes that the PRmini and PR20 can be matched to?
A: PRmini and PR 20 can be matched to 0.5MHz probes.
Q: Are the PRmini and PR20 products independently developed by your company?
A: Sure! YUSHI has professional R&D teams, laboratory and our own factory.
Q: What is the development library programming language for PRmini and PR20?
A: Our programming language for PRmini & PR20 is C++.
Q: Can you support OEM service?
A: We have conditions related to labeling services. If you need, please feel free to contact us by email or WhatsApp.
Q: What's your MOQ?
A: 1 set for instruments
1 pc for accessories
