Product Overviews

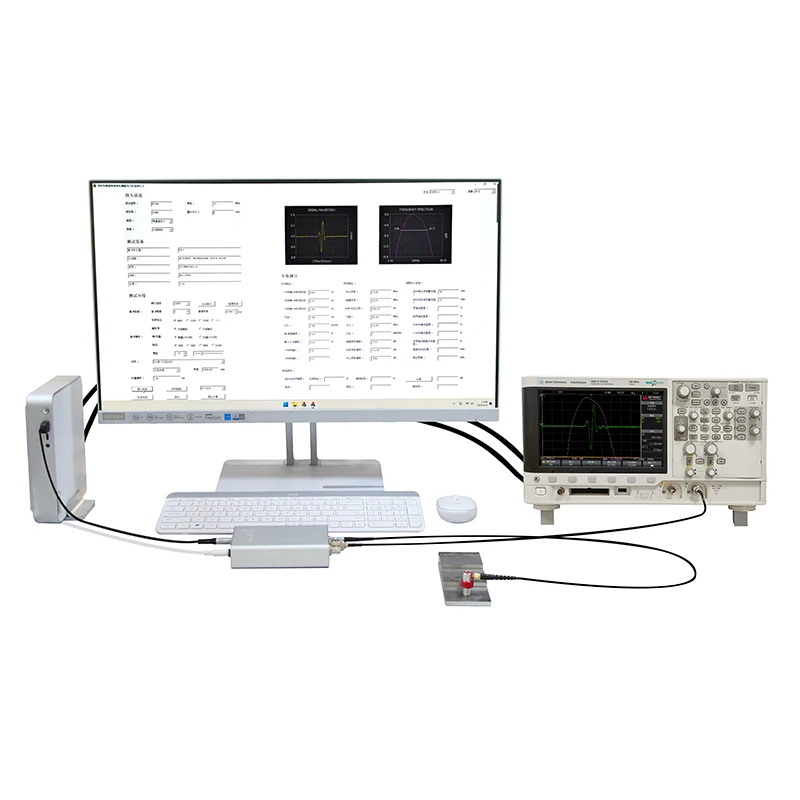

YUSHI Instruments introduces a multi-channel customizable ultrasonic pulse generator receiver designed for complex industrial scenarios based on the technology accumulated from the proven single-channel device PR10.
The device supports 2 to 16 channels of flexible expansion of integrated high-precision signal control and real-time data acquisition functions.
It is suitable for phased array ultrasonic testing (PAUT), large-scale automated flaw detection, simultaneous analysis of multiple probes and other high-level needs. Through the modular architecture and open software interface, users can freely configure the number of channels,triggering mode and data processing algorithms, realizing the coverage of the whole scenario from laboratory research and development to production line integration.
Core Advantages
YUSHI Pulse Generator Receiver has many outstanding features to meet users' requirements for R&D.
1.Multi-channel synchronization control
- Number of channels: up to 16 channels can be customized.
- Trigger mode: support for internal synchronization trigger, external trigger, adapt to multi-probe work.
2.High performance signal processing
Transmission parameters
- l Pulse voltage: 60V/110V/150V/200V
- l Pulse width: 28ns (1~40 times adjustable).
Receiving Performance
- l Bandwidth: 0.5-20MHz, gain range -4dB~55dB (1dB step)
- l Damping matching: 34Ω/50Ω/90Ω/510Ω multi-grade selectable, optimize probe and material impedance adaptation.
3.SDK development support: you can use the open SDK software development kit in a variety of mainstream Windows systems to independently develop application software.
Customized Service
YUSHI's pulse transmitter receivers support the following customizations.
1.Hardware Expansion
Number of channels: Support customized number of channels, basic configuration, can be expanded to 16 channels on demand.
Interface type: optional aviation plug, BNC or LEMO interface, adapted to different industry standard probes.
2.Data acquisition: 16-channel acoustic signal acquisition, acquisition frequency 20MHz.
Summary
With the core competitiveness of modularized design, high-precision synchronous control and open ecology, Yusi Pioneer's multi-channel pulse generator receiver breaks the monopoly of imported equipment, and the price is only 60%-70% of similar products. Whether it is the flexible adaptation of complex industrial scenarios or the customized needs of cutting-edge scientific research, efficient and reliable solutions can be realized through this platform.
